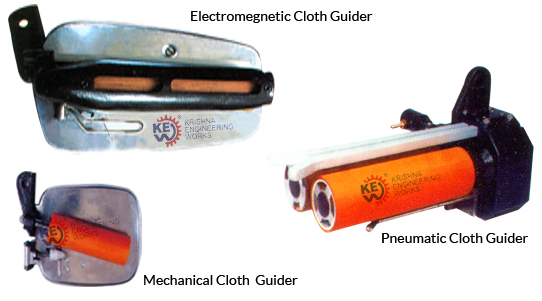

Cloth Guider
Cloth Guider
Standard Features
Krishna Engineering Works India, a leading manufacturer, exporter, and supplier of Cloth Guider from last 25 years, India. High quality Cloth Guider with heavy duty process. Designed for accurate performance to use in dry as well as wet fabrics with high quality process.
- Easy installation and operation.Most powerful model in pneumatic Cloth Guiders.
- Easily mounted on adjustable type support.
- Can be used in vertical, horizontal direction.
- Suitable or use in dry / wet fabrics.
- Different material of rollers are provided for special application.
- Super sensitive web control even without base plates.
- Suitable for higher speed and broader fabric width.
- Safely rods are provided render to avoid accident & to prevent damage to rollers
- Pressure regulating valve with filter & Pressure indicating gauge is provided to adjust the nipping pressure between the rolls for various thickness & tensions.
- Best performance for Woven, Knitted, Towel fabrics, Jute, Tyre cord, Foils.
Technical Specification
- Fixed roller of 80mm dia, 280mm length – Hylum / Stainless steel / Teflon.
- Moving roller of 80mm die, 280 ce length – Synthetic rubber / polyurethane /stainless steel. Web edge sensing – mechnical by feeler lever.
- Operating pressure – lbar. Roller nip – Pneumatic.
- Weight 22 kg / pair.
