Expandable Shaft

Krishna Engineering Works India, offers comprehensive range of Expandable Shaft for different industries. we have been manufacturing Expandable Shaft from last 25 years with premium quality to meet international standard.

Duplex shaft winder(centre winding type):
It is capable of compensating speed variation due to gauge variation with multi cores.
Minimum 20 mm core width is possible.
Reel holding is possible at any position across the width.
No-time lost in re-positioning cores since no distance pieces are required.
Shaft can run at very high speed.

MECHANICAL SHAFT (BLADDER LESS SHAFT):
This is a lug type shaft but core holding is initiated mechanically and not pneumatically. This shaft mainly consists of slotted pipe, steel lugs, brass cam, ratchet etc.

The shaft is capable of taking any challenge arising out of heavy load and speed. It is possible only because of positive gripping and core centering achieved without any extra efforts with the help of cam/lug design. It is very much advantageous with cores having uneven inside diameter. Key and alien-cap bolt prevent any shearing of journals – pipe assembly.

Sizes:
Suitable for Core ID. 3″ and 6″
Length as per requirement

QUICK LOCK SHAFT:
Economic model for Re-winder shaft having all the advantages like slippage, accommodating gauge variation, smaller core width etc. With only limitation of time needed for repositioning of the core. This shaft is suitable for Paper Cores.

Sizes:
Suitable for core I.D. 3″, 4″ & 6″
Length as per requirement
Individual Quick Locks are also available having width of 50 mm, 75 mm, 100 mm and 300 mm. The bore of Quick Lock is tailor made.

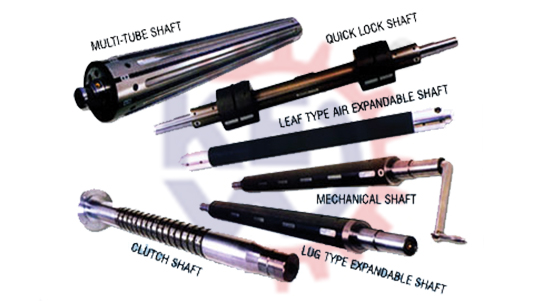

MULTI-TUBE SHAFT:
In case of failure of bladder, though having least chance, shaft can hold the core till the process complete.
Damaged bladder can be changed easily, even on the machine.
Expanded area is available almost all over the length of pipe body. Very small width of the cores is possible to hold.

LUG TYPE EXPANDABLE SHAFT :
This is a very commonly used shaft. It mainly consists of slotted pipe, journals to suite users machine, lugs, rubber bladder and non-return valve.

Sizes:
Suitable for Core ID. dia 3″, 4″, 6″, 8″ (metric size and special sizes also produced).
Lengths as per customers requirement

LEAF TYPE AIR EXPANDABLE SHAFT :
This type of shaft mainly consists of slotted base pipe, metal leaves with knurling/serration, rubber bladder, non-return valve and suitable journals.

This type of shaft can be used at unwind station, but mainly used at rewind stage for advantages like:

Narrow width of core
To prevent damage to thin cores (100 % support available to the core ID.)
At times core-less winding is also possible

Sizes:
Suitable for core ID. 3, 4 and 6 (metric size and special sizes also produced).
Lengths as required

Sizes:

• Suitable for core ID. 3″ and 6″.
• Length as per requirement.
