Web Guiding System with high quality and accurate performance based air pressure power units. Various types of web guiding system, Pneumo Web Aligner, Hydraulic Power Pack Unit, line of Edge, Center, and Line Guiding. All types of Web Guiding System, available in models from 1/4 H.P. to 3 H.P also, web edge sensor, edging guide, web tension control, web guide, web guide sensor. to meet any guiding application you may have. Web Guiding System is used for any winding & unwinding application for guiding the web to reduce the wastages of the material & to get high production output with minimum man power. We are Web Guiding System, web edge sensor, edging guide, web tension control, web guide, web guide sensor Manufacturer with heavy duty parts for different machines like Slitter Rewinder Machine , Winding Rewinding and many more.
Web Guiding System Manufacturer
Application of Web Guiding System on Different Machines like:
Rotogravure Printing Machine
Lamination Machine / Coating Machine
Slitter Rewinder Machine
Doctoring Rewinding Machine
Paper Machinery
Textile Machine like Batching Machine, Inspection Rewinding Machine , etc
Tyre-Cord Machinery
|
TYPE |
KEW–17 |
KEW–30 |
|
Motor rating (3 phase, 50 Hz) |
0.5 HP |
1HP |
|
Pump flow rate |
3.4 l/min |
5.8 l/min |
|
Tank capacity |
17 liters |
30 liters |
|
Oil type |
Servo 32, Enklo 44, Hydro 37 |
|
|
Line pressure |
14 bar |
21 bar |
|
Max. Operation force (50.8 mm dia. Cylinder) |
260kg |
389.5 kg |
|
Follow-up speed |
||
|
Max. At 3.4 l/min |
30mm/sec |
— |
|
At 5.8 l/min |
— |
40mm/sec |
|
Air sensor air pressure |
5 to 28 mbar, infinitely adj. |
|
|
Weight including oil |
40kg |
60kg |
VARIOUS TYPES

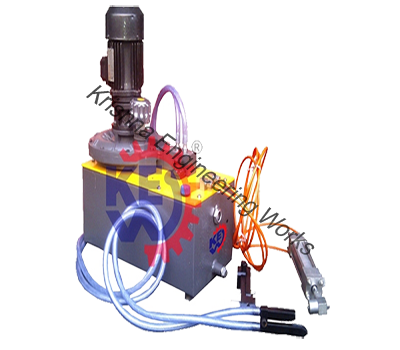

1) ELECTRO-HYDRO Web Aligner (Power Pack) Unit:
- Electronic of the film Photocell sensor for edge.
- Electronic 0 – 5 HP AC Motor.
- Electrical Panel Board for Operate the complete Unit.
- Hydraulic Cylinder – Adjuster – Oil Pipe.
- Speed of Unit 250/min
- Variation of the film Winding is 0.5
2) HYDRO -PNEUMATIC Web Aligner Unit.
- 0.5 H.P. Motor
- Air Pipe – 5 Mtr.
- Oil Pipe – 5 Mtr.
- Sensor – 1 pcs
- Adjuster – 1 pcs.
- Air Filter – 1 pcs.
- Oil Filter – 1 pcs.
- Hydraulic Cylinder size 6” strock – 1 pcs
