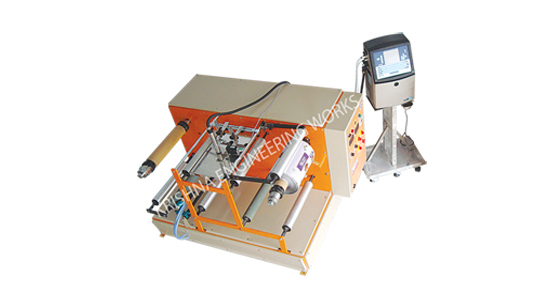

Winding Rewinding Machine
Krishna Engineering Works, have been manufacturing, exporting and supplying various types of Winding Rewinding Machine. Different types of Winding Rewinding Machine with high quality and heavy duty equipment. Winding Rewinding Machine with different 25 types per client’s application and industry specific requirements.
- Cantilever design balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Ink Jet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- M.S. CHANNEL FRAME BODY with mechanical clutch & break unwind / unwind system, unwind / rewind shaft & cones for printed material holding cores for printed material cores, alum – guide roller & all other standard accessories.
Technical Specification
- Web Width : 100 mm to 1500 mm
- Maximum Weight of Unwind: 100 Kg to 1000 Kg (Different Models for different Weight)
- Max Parent Reel dia.: 400 mm.
- Max. Rewind reel dia.: 400 mm
- Rewind Core Dia.: 76 mm
- Motor: 2 HP DC motor / 2 HP AC motor (3 HP, 5 HP also available on suitable Model)
- Max. Designed Speed: 100 to 150 Mtrs / min
OPTIONAL PARTS OF DOCTORING REWINDING MACHINE:
- Line Guide System for Electronic Edge Sensing for Perfect Winding
- Air Shaft at Unwinder & Rewinder
- Tension Control System for Auto Tension at Unwinder.
- Reverse Forward System
- Stroboscopic Equipment for Inspection
- Techno Feed System to keep speed constant from start to end of roll
- Encoder for Inkjet Printer
- High Capacity Blower Fan with Heater (800W) attached to facilitate quick drying of Ink
- Slitting Arrangement
FEATURES OF DOCTORING REWINDING MACHINE
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
